센터라인 버터플라이 밸브 버터플라이 밸브 더블 편심 버터플라이 밸브High-Frequency 1S Pneumatic Butterfly Valve Fast Acting Shut-off Valve
GEKO High-Frequency Pneumatic Butterfly Valve | Fast Opening and Closing | High-Speed Pneumatic Butterfly Valve is designed for fast and reliable fluid control in a wide range of industrial applications. Featuring a high-speed response time of just 1 second, this valve allows for quick opening and closing, making it ideal for systems requiring frequent flow adjustments. Driven by a pneumatic actuator, the valve offers efficient and automated operation, reducing manual intervention and enhancing system performance. Its robust construction ensures durability, while its compact design makes it easy to install in tight spaces. Suitable for applications in industries such as automation, HVAC, water treatment, chemical processing, and more, this valve is the perfect solution for efficient and precise fluid control.
|

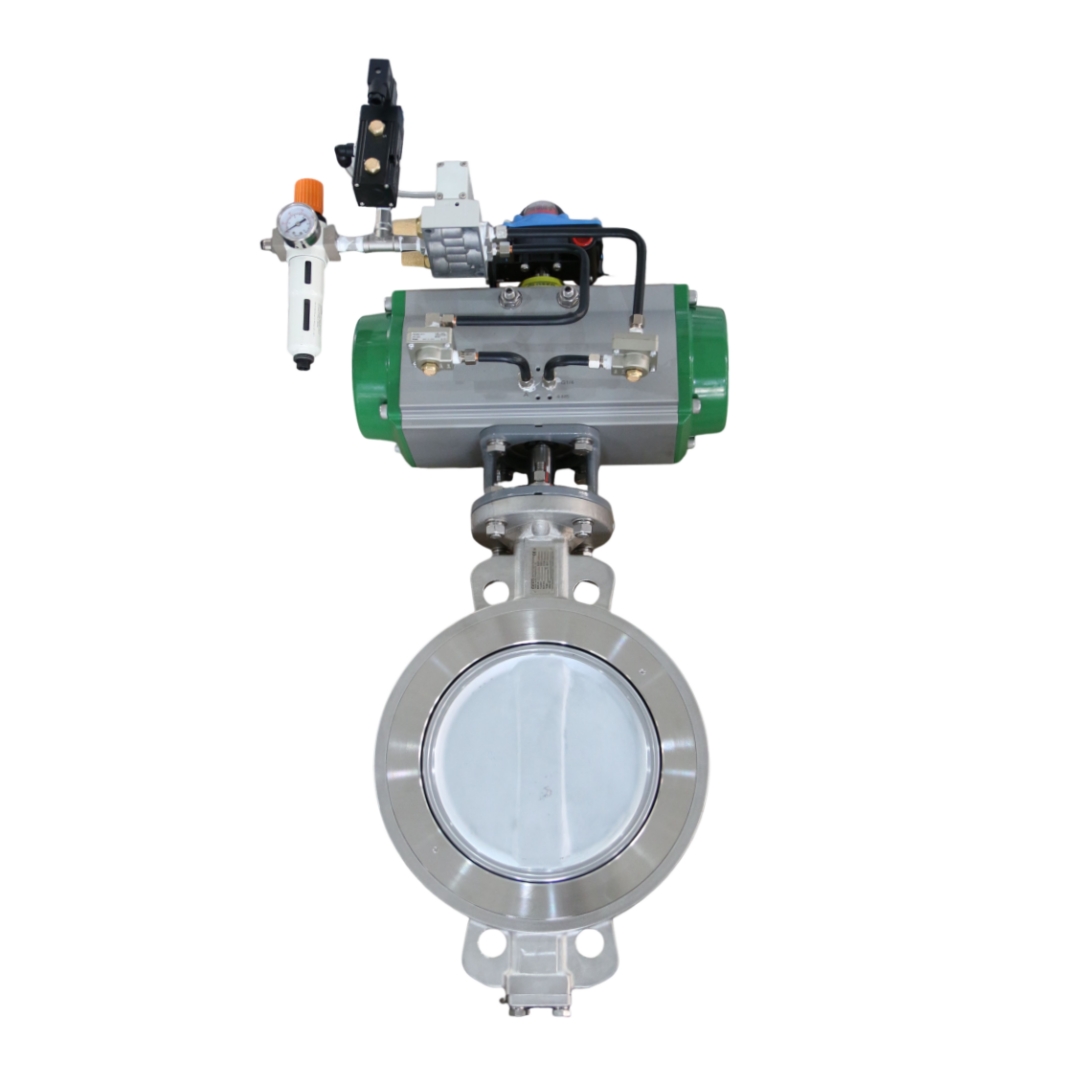

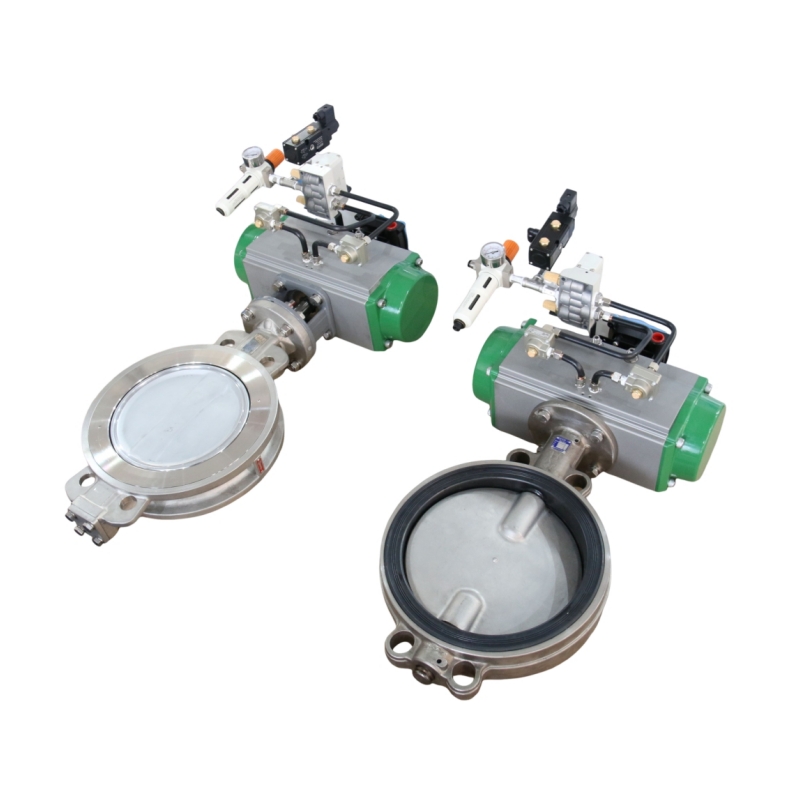

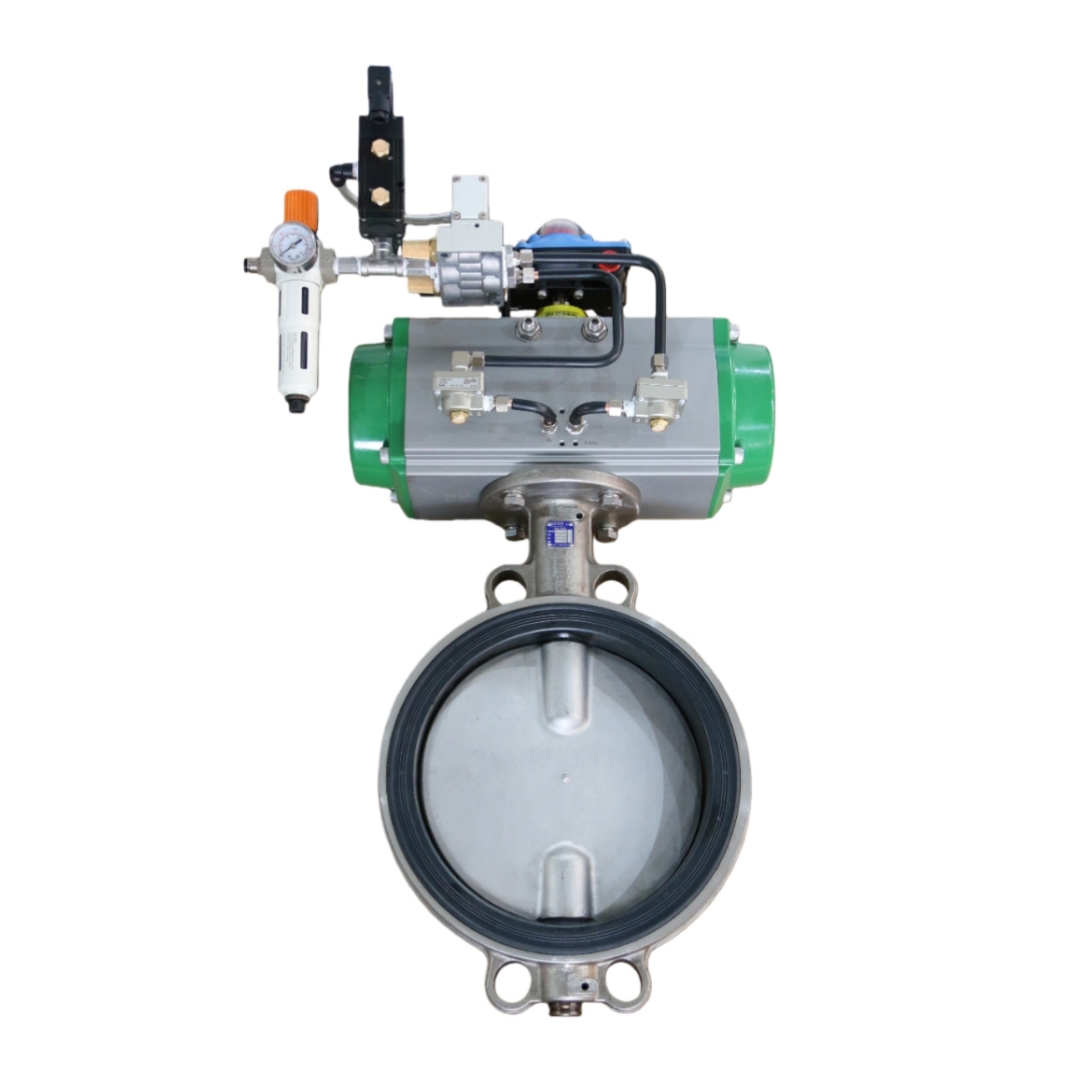

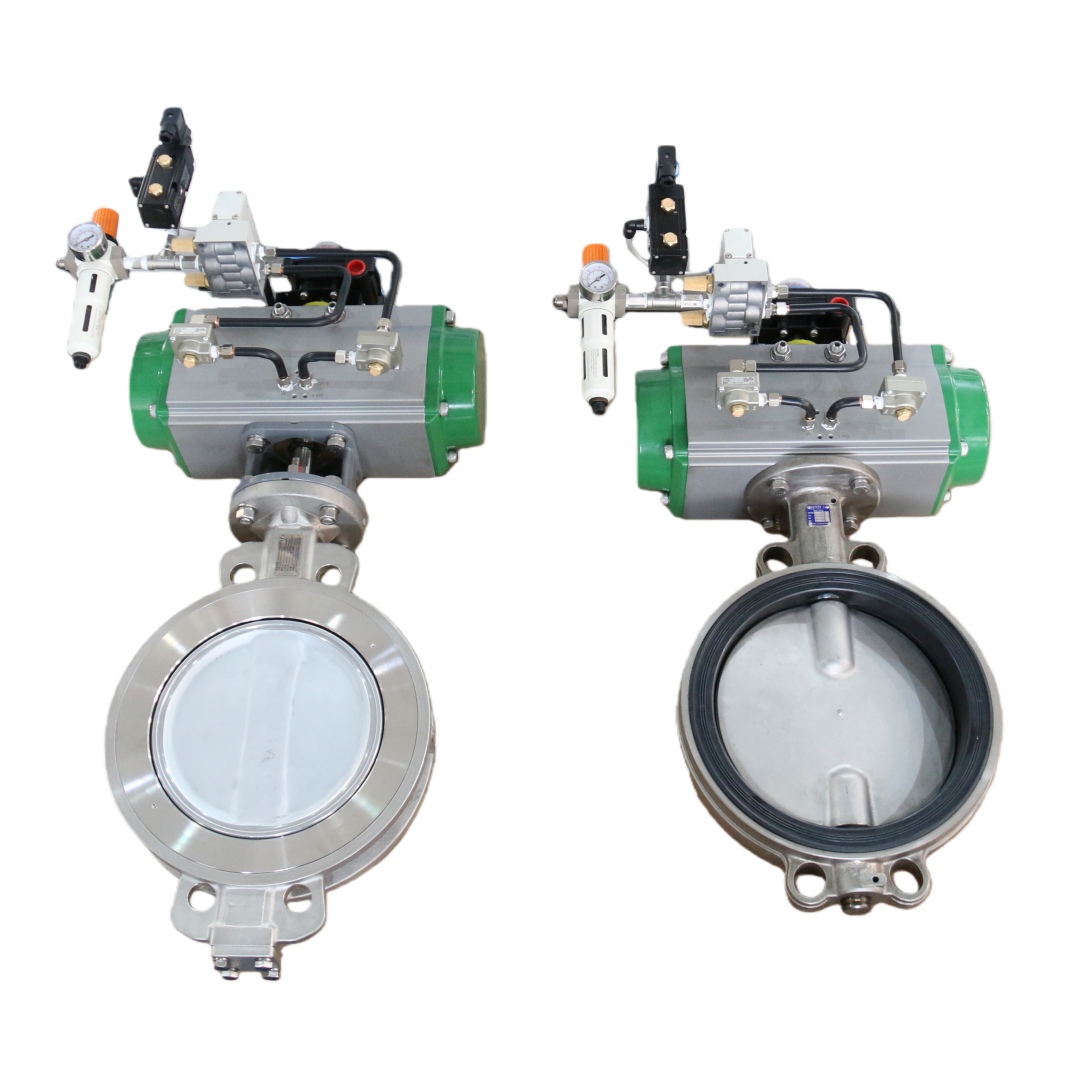

GEKO High-Speed Response Pneumatic Butterfly Valve
|
|
|
Size Range22:50:42 2"~160"（DN50~DN600）
|
Body Materials Carbon steel (WCB, A105), stainless steel (CF8/CF8M, CF3/CF3M), alloy steel (F22, WC6, WC9), duplex/super duplex (2205, 2507), nickel-based alloys (Inconel, Hastelloy, Monel), or special materials (Titanium, Zirconium, Tantalum).
|
|
Temperature Range -320°F to 842°F（-196°C to 450°C）
|
Stem Materials 17-4PH, 410 Stainless Steel, XM-19 (Nitronic 50),stainless steel (410, 420, 431, 17-4PH, 316) or nickel-based alloys, optionally hardened or coated for extra strength and wear resistance |
|
Maximum Allowable Operating Pressure ASME 150LB, 300LB, 600LB 900LB/ EN 1092 PN 10, 16, 25, 40, 63, 100, 150
|
Seat Materials PTFE, RPTFE, Viton, EPDM
|
|
Shut off Rating Zero Leakage
|
Disc Materials Stainless steel, duplex stainless steel, or nickel-based alloys, with optional hard-facing (Stellite, WC) or HVOF coating for wear and corrosion resistance. |
|
Design Standard API 609, ASME B16.34, ASME VIII, API 600 |
Flange Drilling ASME B16.5, ASME B16.47, EN 1092, ISO 7005 |
|
End Connections Wafer, Lug, Double Flanged |
Testing standard ISO 5208, EN12266-1, API 6D, API 598, BS 6755 |
|
Ports Full bore |
Connect Platform ISO5211, Bracket |
|
Face To Face AAPI 609, ASME B16.10, ISO 5752, EN 558 |
Applications Oil and gas, steam, power generation, refining, chemical processing |
GEKO Fast Acting Shut-off Butterfly Valve
The GEKO High-Frequency 1S Pneumatic Butterfly Valve is manufactured
in accordance with thelatest MSS SP-67, API 609 (USA), and ISO 7005
standards. All valves are fully tested according to API 598 standards, including
static pressure tests, gas tightness tests, and overall performance tests,
ensuring zero leakage and high quality.
Valve size range: DN40 ~ DN600
Pressure rating: PN 1.0 ~ 1.6 MPa
Incorporate both DIN and ASME design standards
Actuator connection dimensions can be customized according to ISO 5211,
ANSI standards, or user requirements.
Applicable flange standards:
ISO 9005–1992 pipeline flange system, PN1.0 ~ PN1.6
ASME / ANSI B16.5-1996 pipeline flange system, CL125, CL150
JIS B2211~2213-1996 pipeline flange system, 5K, 10K, 16K
GB/T 9113-2000 pipeline flange system, PN1.0 ~ PN1.6
The Feature of GEKO High-Speed Response Pneumatic Valve
Fast Response Time: Achieves quick opening and closing with a 1-second action time, ideal for high-frequency operations.
Pneumatic Actuation: Powered by a pneumatic actuator for efficient, automated flow control.
Durable Construction: Built with high-quality materials for long-lasting performance and reliability in demanding environments.
Compact Design: Space-saving design, easy to install in tight spaces and piping systems.
Wide Application Range: Suitable for use in industries such as automation, HVAC, water treatment, chemical processing, and more.
Reliable Flow Control: Ensures precise and efficient fluid control with minimal maintenance.
